3.7L Engine
WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

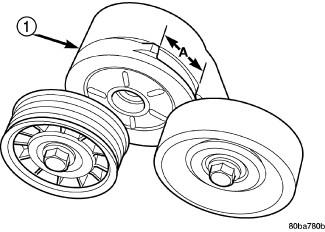

| 1 - AUTOMATIC TENSIONER ASSEMBLY |
- Install pulley and pulley bolt to tensioner. Tighten bolt to 61 N.m (45 ft. lbs.) torque.
- install accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
