Rail, Fuel: Removal: Removal

WARNING:

Risk of injury to eyes and skin from contact with fuel. Wear protective clothing and eye protection. Risk of poisoning from inhaling and swallowing fuel. Pour fuel only into appropriately marked and approved containers. Failure to follow these instructions may result in possible serious or fatal injury.

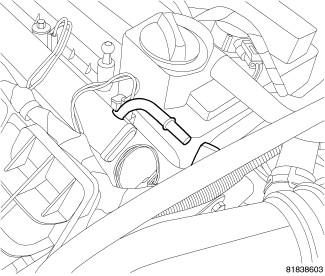

Fig 1: Fuel Line At Rail

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Wrap shop towels around hose to catch any gasoline spillage.

Release the fuel system pressure.
Disconnect the negative battery cable.
Disconnect the fuel line from the fuel rail. Refer to the FITTING, QUICK CONNECT .

Fig 2: Fuel Line Connection
Courtesy of CHRYSLER GROUP, LLC
Fuel line removed from the fuel rail.

Fig 3: Electrical Connectors
Courtesy of CHRYSLER GROUP, LLC
Unlock and disconnect the electrical connectors from the fuel injectors.

Fig 4: Harness Clips
Courtesy of CHRYSLER GROUP, LLC
Remove the wiring harness from the fuel rail studs.

Fig 5: Electrical Harness Removed
Courtesy of CHRYSLER GROUP, LLC
Remove the 2 bolts from the fuel rail.

Fig 6: Fuel Rail & Injectors
Courtesy of CHRYSLER GROUP, LLC
Remove the fuel rail and injectors from the intake manifold.

Fig 7: Fuel Rail & Injectors
Courtesy of CHRYSLER GROUP, LLC
Fuel rail removed from intake manifold.

Fig 8: Fuel Injector And Rail
Courtesy of CHRYSLER GROUP, LLC
Remove fuel injectors from fuel rail.
