Cable, Shift Interlock: Removal: Removal

Disconnect the battery.
Remove the shifter housing. Refer to REMOVAL .
Separate the shift interlock cable from the shifter.

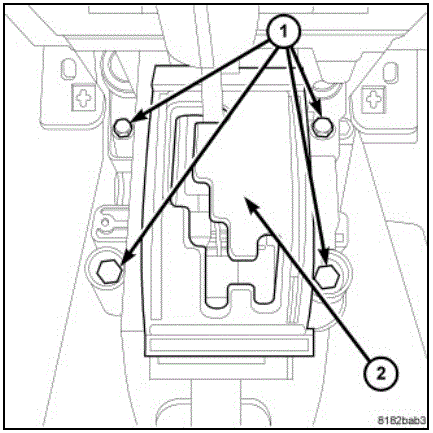

Fig 1: Shifter Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the bolts (1) at the shifter.
Remove lower shroud at steering column. Refer to REMOVAL .
Place the ignition switch in the ON position.

Fig 2: Lock Cylinder Housing & Interlock Cable Connector
Courtesy of CHRYSLER GROUP, LLC
Depress the clip on the shift interlock cable (2) and pull cable out of column (1).
Remove the cable.
