Cluster Assembly

WARNING: This page is about a different car, the 2013 Jeep Patriot and 2013 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

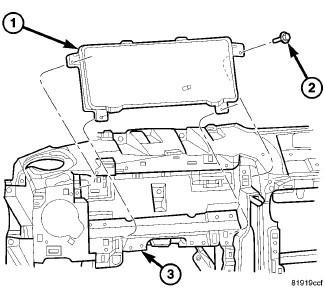

Fig 1: Replacing Instrument Cluster
GC0084736Courtesy of CHRYSLER GROUP, LLC
  1. Position the instrument cluster (1) close enough to the instrument panel to reconnect the instrument panel wire harness connectors to the connector receptacles on the back of the cluster housing.
  2. Position the instrument cluster mounting tabs to the mounting holes in the instrument panel structural support (3).
  3. Install and tighten the four screws (2) that secure the mounting tabs of the instrument cluster. Tighten the screws to 2 N.m (17 in. lbs.).
  4. Reinstall the instrument panel top cover. Refer to COVER, INSTRUMENT PANEL, INSTALLATION .
  5. Reconnect the battery negative cable.
