Rail, Fuel: Installation: Installation

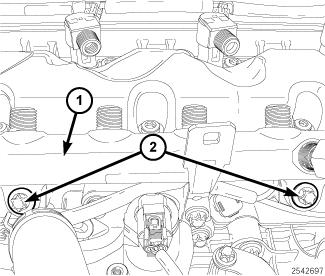

Fig 1: Fuel Rail & Bolt
GC0138071Courtesy of CHRYSLER GROUP, LLC
  1. Install the fuel rail (1). Tighten bolts (2) to 9 N.m (80 in. lbs.).

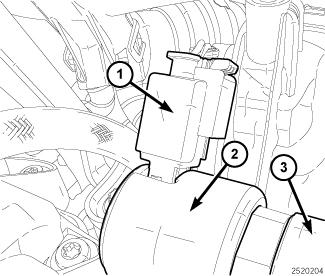

    Fig 2: Fuel Rail Pressure Sensor Harness Connector
    GC0138069Courtesy of CHRYSLER GROUP, LLC
  2. Connect the fuel rail pressure sensor wire harness connector (1).
    Fig 3: Fuel Rail Pressure Regulator Harness Connector
    GC0138068Courtesy of CHRYSLER GROUP, LLC
  3. Connect the fuel rail pressure regulator wire harness connector (2).

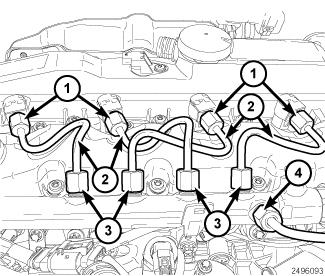

    Fig 4: Fuel Injectors, High Pressure Fuel Tubes, Fuel Rail & High Pressure Feed Line
    GC0137901Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Any time a high pressure fuel tube has been loosened or disconnected, that high pressure fuel tube must be replaced.

  4. Install the new high pressure feed tube (4) to fuel rail. Tighten fuel tube (4) to 33 N.m (24 ft. lbs.).
  5. Install the new high pressure fuel tubes (2) at fuel injectors (1) and fuel rail (3).
  6. Tighten the high pressure fuel tubes (2) at fuel injectors (1) and fuel rail (3) to 7 N.m (62 in. lbs.).
  7. Tighten the high pressure fuel tubes (2) at fuel injectors (1) and fuel rail (3) to 33 N.m (24 ft. lbs.).

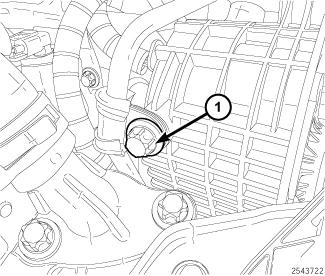

    Fig 5: High Pressure Feed Line Bolt
    GC0138070Courtesy of CHRYSLER GROUP, LLC
  8. Install bolt (1) securing the high pressure feed tube. Tighten bolt (1) to 9 N.m (80 in. lbs.).

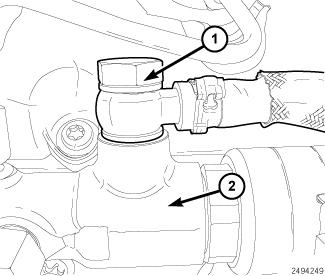

    Fig 6: Banjo Bolt & Rail
    GC0137900Courtesy of CHRYSLER GROUP, LLC
  9. Using new sealing washers, position fuel rail return line to the rail (2). Tighten banjo bolt (1) to 32 N.m (24 ft. lbs.).

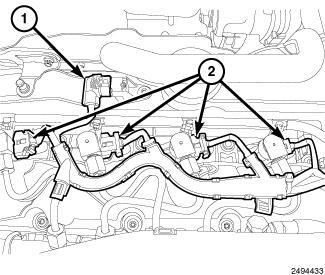

    Fig 7: Camshaft Position Sensor (CMP) Harness Connector & Fuel Injector Harness Connectors
    GC0137894Courtesy of CHRYSLER GROUP, LLC
  10. Position fuel injector wire harness and push down to lock in place.
  11. Connect the fuel injector wire harness connector (2).
  12. Connect the Camshaft Position Sensor (CMP) sensor (1) wire harness connector.

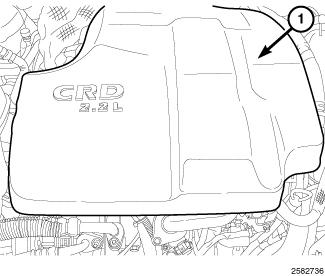

    Fig 8: Engine Cover
    GC0137871Courtesy of CHRYSLER GROUP, LLC
  13. Install the engine cover (1).
  14. Connect the negative battery cable.
