Switch, Seat Belt: Description: Description

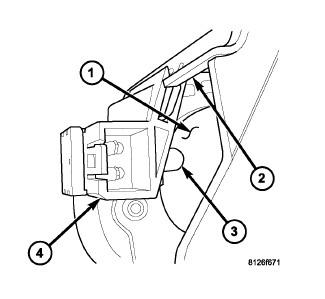

The seat belt switch (4) is a small, normally open, single pole, single throw, plunger (3) actuated, momentary switch. One seat belt switch is installed on the driver side front seat belt retractor frame (2) over the retractor spool (1). On domestic market vehicles, a second seat belt switch is installed on the passenger side front seat belt retractor frame. The seat belt switch includes an integral connector that is connected to the vehicle electrical system through a take out and connector of the body wire harness.
The seat belt switch cannot be adjusted or repaired and, if ineffective or damaged, the switch unit must be replaced.
