P0716-Input Speed Sensor 1 Circuit Performance: Notes

WARNING: This page is about a different variant/trim than selected.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

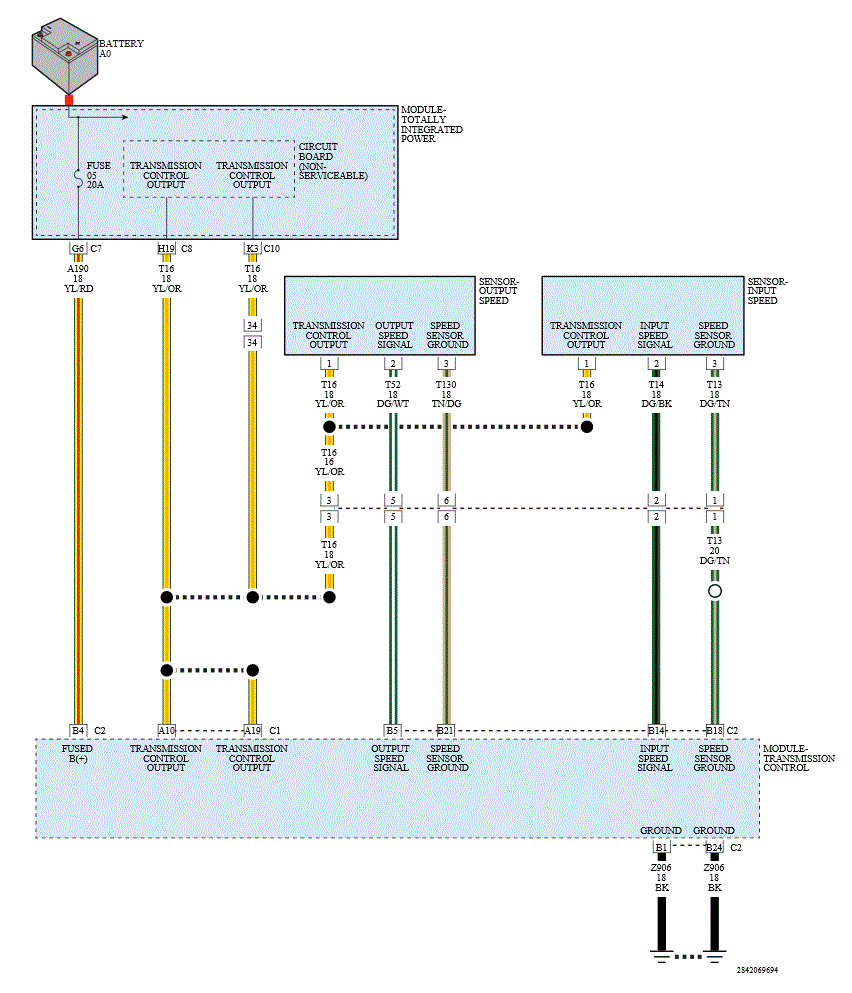

Fig 1: Input Speed Sensor 1 Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
