SPRING, Front Coil: Installation: Installation
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

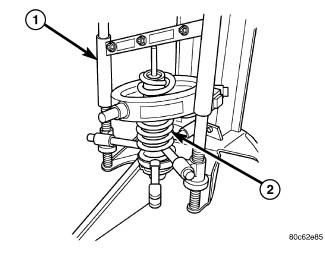

| 1 - SPRING COMPRESSOR |
| 2 - SPRING |
- Install the shock to the spring (2) and spring compressor (1), After the transfer of the necessary parts to the type of repair being done (Insulator, Spring, shock and mount).
- Install the shock mounting nut. Tighten the bolt to 41 N.m (30 ft. lbs.).
- Loosen the compressed spring (2).
- Remove the shock assembly from the spring compressor (1).
- Install the shock to the vehicle. See Front Suspension/Front/SHOCK ABSORBER, Suspension - Installation .
- Install the tire and wheel assembly. Refer to Tires and Wheels/Wheels - Standard Procedure .
- Remove the support and lower the vehicle.
