Module, Heated Seat: Installation: Installation
WARNING: This page is about a different car, the 2014 Jeep Patriot and 2014 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
The Heated Seat Module mounting tab can be damaged during module removal and installation. Use care to properly align tab to prevent binding that could result in tab breakage.

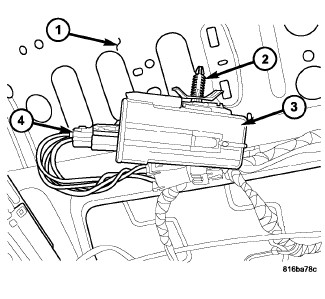

- Install the heated seat module (3) into the vehicle.
- Position the retaining tab (2) with the mounting hole in the seat pan (1). Firmly apply even pressure to the module (3) until the mounting tab is fully seated.
- Connect the wire harness connector (4) to the heated seat module (3).
- Connect the battery negative cable.
- Check for proper heated seat system operation.
