3.7L Engine

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

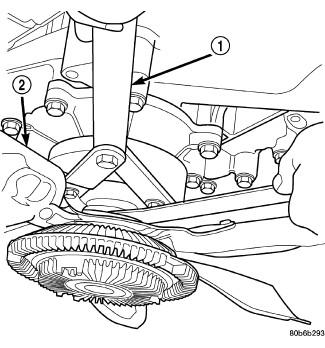

Fig 1: Using Special Tool 6958 Spanner Wrench and Adapter Pins 8346
GC0085907Courtesy of CHRYSLER LLC
  1. Install fan blade assembly to viscous fan drive. Tighten bolts to 23 N.m (17 ft. lbs.) torque.
  2. Position fan blade/viscous fan drive assembly into the radiator shroud.
  3. Install the radiator shroud and fan drive assembly into the vehicle.
  4. Install fan shroud retaining screws. Tighten screws to 6 N.m (50 lbs. in.)
  5. Using Tool 6958, install the fan blade/viscous fan drive assembly to the water pump shaft. Tighten mounting nut to 50 N.m (37 ft. lbs.).
  6. Install the upper radiator hose.
  7. Fill cooling system. See Cooling - Standard Procedure .
  8. Connect battery negative cable.
