Module, Intrusion: Installation: Installation
WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

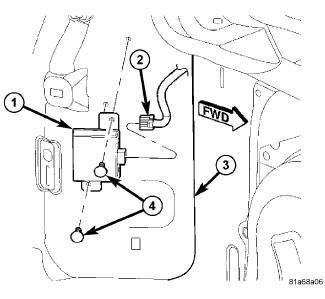

Fig 1: Identifying Intrusion Module, Left Inner D-Pillar, Plastic Push-In Fasteners & Body Wire Harness
- Position the intrusion module (1) onto the left inner D-pillar (3).
- Install the two plastic push-in fasteners (4) that secure the module to the inner D-pillar.
- Reconnect the take out of the body wire harness (2) to the connector receptacle on the forward-facing side of the module.
- Reinstall the trim onto the inside of the left inner D-pillar. Refer to PANEL, C-PILLAR TRIM, INSTALLATION .
- Reconnect the battery negative cable.
