Module, Compass: Removal: Removal

WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

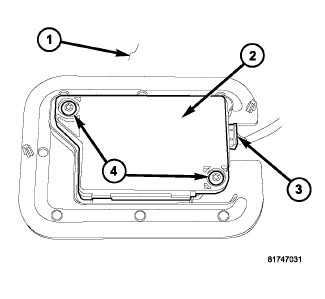

Fig 1: Identifying Remote Compass Module
GC0085981Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Partially remove the headliner (1) to gain access to the Remote Compass Module (RCM) (2). for the appropriate procedure. Refer to HEADLINER, REMOVAL .
  3. Disconnect the RCM electrical connector (3).
  4. Remove the RCM retaining screws (4).
  5. Remove the RCM (2) from the vehicle.
