Module, Compass: Description: Description
WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

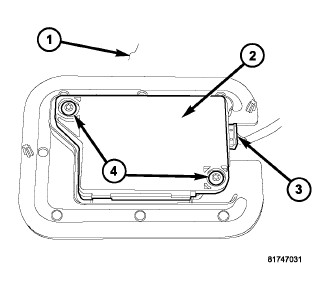

The Remote Compass Module (RCM) (2) is a separate module mounted above the headliner (1) in the left rear corner of the passenger compartment. The RCM can be accessed by removing both quarter trim panels and the upper liftgate opening garnish molding, then carefully lowering the rear of the headliner at the D-pillar area.
The RCM cannot be adjusted or repaired. If the RCM is damaged or ineffective, the entire module must be replaced. Refer to MODULE, COMPASS, REMOVAL .
