DUCT, Defroster: Installation: Installation

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

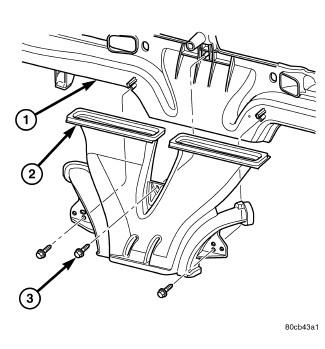

Fig 1: Defroster Duct
GC0086373Courtesy of CHRYSLER LLC
  1. Position the defroster duct (2) into the instrument panel (1).
  2. Install the three screws (3) that secure the defroster duct to the instrument panel. Tighten the screws to 1.2 N.m (10 in. lbs.).
  3. Install the instrument panel. Refer to Body/Instrument Panel/PANEL, Instrument - Installation .
