Starting System (Service Information): Starter: Installation: Gas

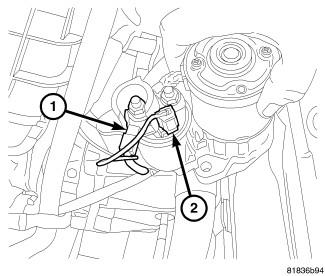

Fig 1: Starter Electrical Connectors

Courtesy of CHRYSLER GROUP, LLC

1. Connect starter motor wiring. Tighten battery cable nut to 10 N.m (90 in. lbs.).

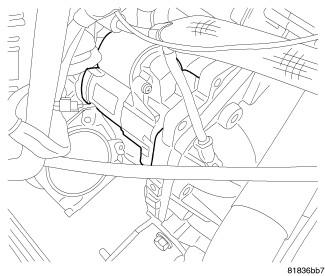

   Fig 2: Rotating Starter

   Courtesy of CHRYSLER GROUP, LLC
2. Install starter motor into vehicle lower engine compartment.

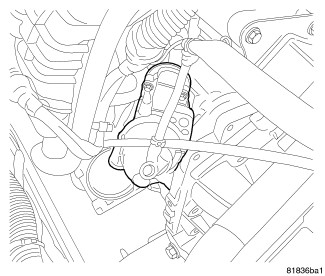

   Fig 3: Installing Starter

   Courtesy of CHRYSLER GROUP, LLC
3. Loose install starter into position.

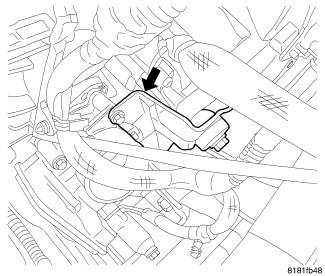

   Fig 4: Throttle Body Bracket

   Courtesy of CHRYSLER GROUP, LLC
4. Install throttle body
5. Install throttle body bracket.

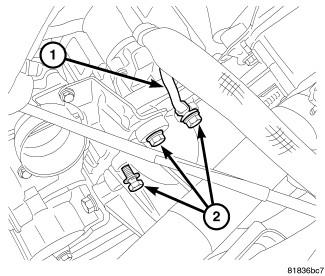

   Fig 5: Mounting Bolts

   Courtesy of CHRYSLER GROUP, LLC
6. Install starter motor mounting bolts and tighten to 54 N.m (40 ft. lbs.).

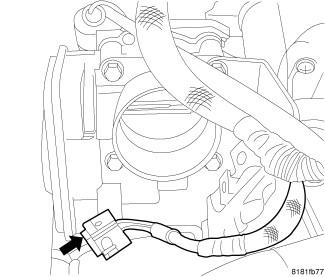

   Fig 6: Throttle Body Electrical Connector

   Courtesy of CHRYSLER GROUP, LLC
7. Connect throttle body electrical connector.
8. Install air cleaner box and inlet tube.
9. Connect battery negative cable.
