B1B70-Up-Front Left Satellite Acceleration Sensor Internal: Notes

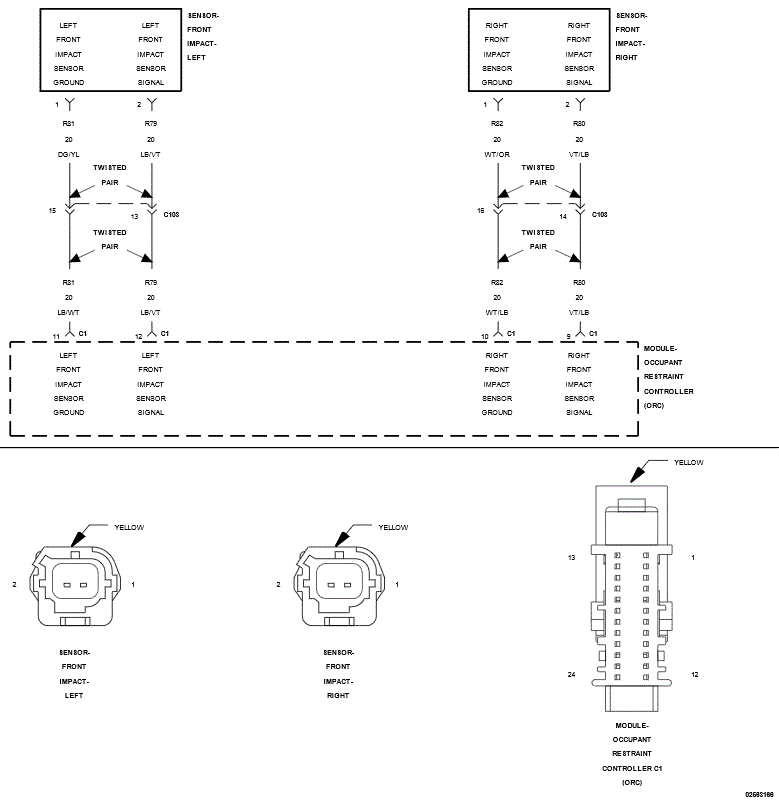

Fig 1: Front Impact Sensors Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
