Sensor-Occupant Detection (D2457A)

Harness-Family: Seat_Right

Color: BLACK

Gender: MALE

Part Number: 7122-8326-30

Part Description: SDL CONNECTOR HOUSING

Connector No: D2457A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Sensor-Occupant Detection Connector End View

Courtesy of CHRYSLER

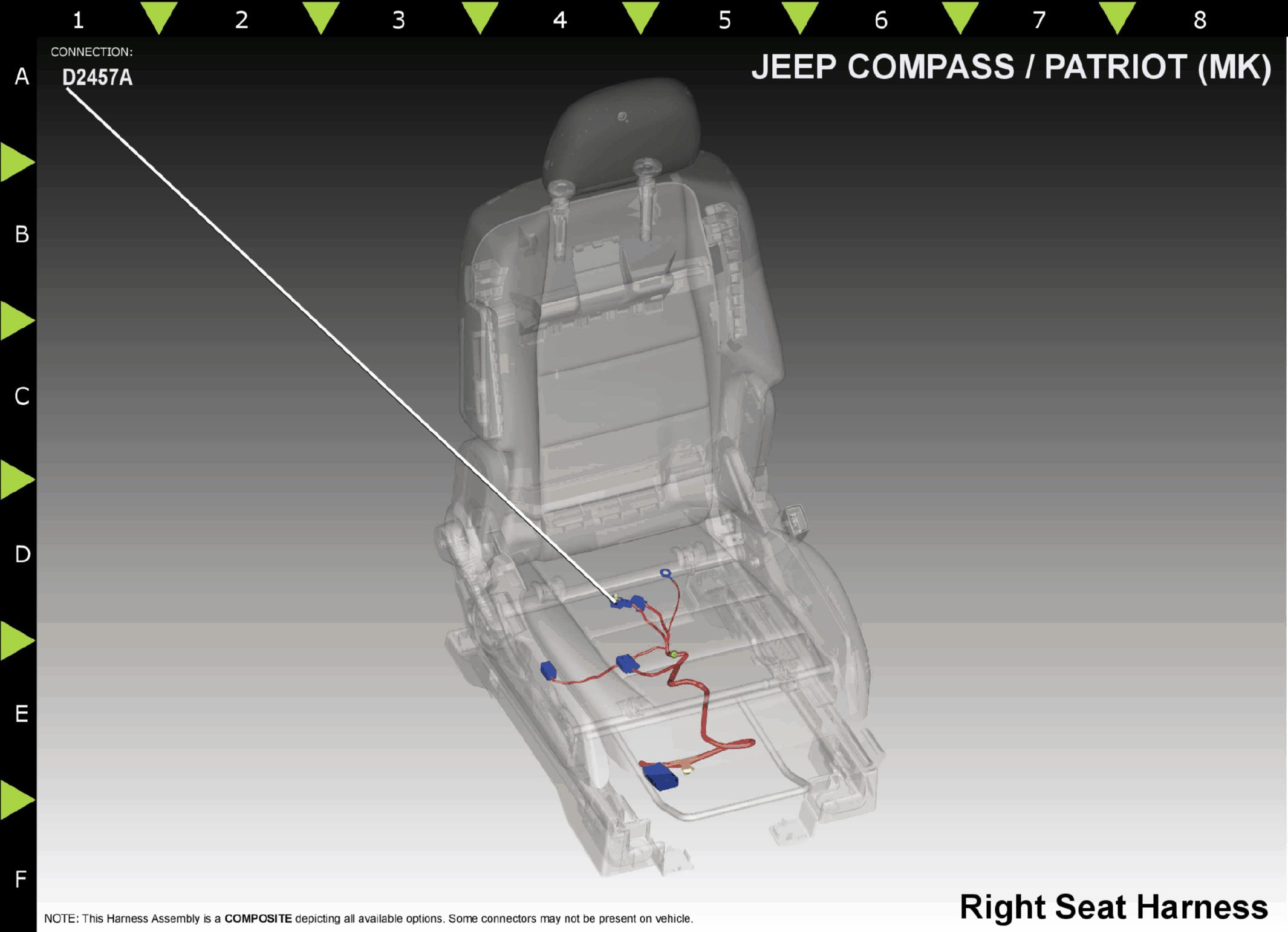

Fig 2: Sensor-Occupant Detection Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R283

LB/DG

0.50

PASSENGER SEAT OCCUPANT DETECTION SIGNAL

N/A

R284

LB/LG

0.50

PASSENGER SEAT OCCUPANT DETECTION RETURN

N/A

⁽¹⁾	Pins not listed are not used for this connector
