DTC P2016: -Intake Manifold Runner Position Sensor Circuit Low: Notes

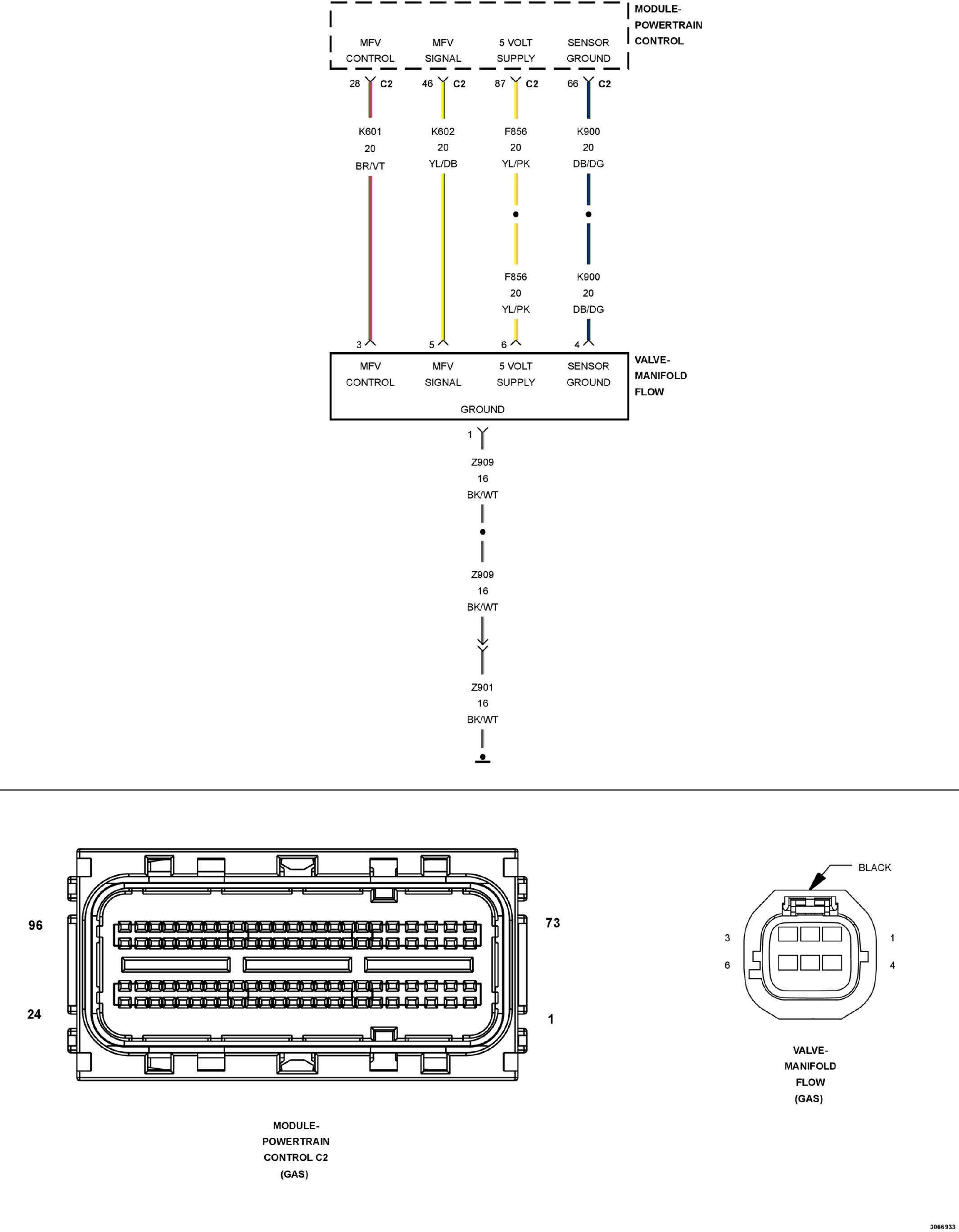

Fig 1: Manifold Flow Valve Position Sensor Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
