Steering System: Gear: Installation: Installation

NOTE:

Transfer the tie rod ends if they are being reused.

NOTE:

If removed, install the power transfer unit . Refer to INSTALLATION .

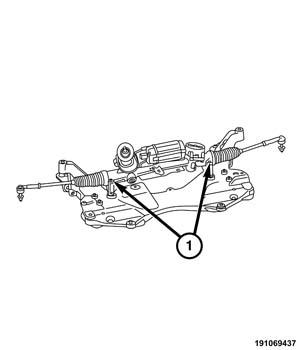

Fig 1: Steering Gear

Courtesy of CHRYSLER GROUP, LLC

Install the steering gear to the crossmember.
Install the steering gear mounting bolts (1) and tighten to 115 N.m (85 ft. lbs.).

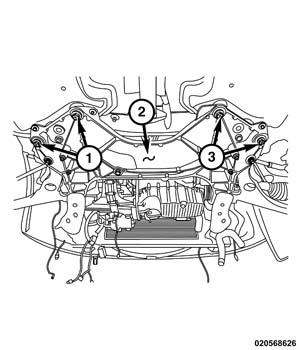

Fig 2: Crossmember Rear Mounting Bolts
Courtesy of CHRYSLER GROUP, LLC
Slowly raise the crossmember (2) into mounted position using the transmission jack matching the crossmember to the marked locations on the body made during removal.
Install four mounting bolts (1, 3) and tighten to 126 N.m (93 ft. lbs.).

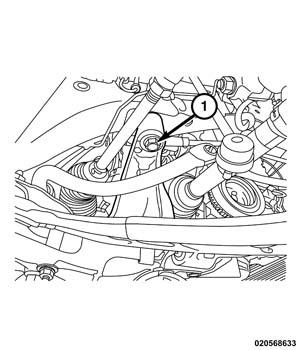

Fig 3: Upper Crossmember Mounting Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the upper mounting bolt (1) on each side of the crossmember and tighten to 120 N.m (86 ft. lbs.).

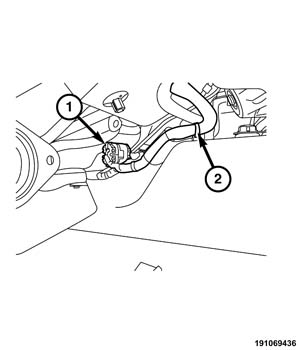

Fig 4: Steering Gear Connector & Tie Strap
Courtesy of CHRYSLER GROUP, LLC
Connect the steering harness connector (1) to the body harness connector at the bottom of the dash panel.
Install the tie strap (2) to the crossmember.

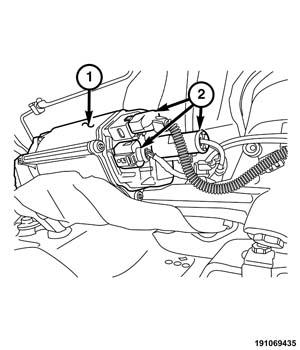

Fig 5: Steering Gear Control Module & Harness Connectors
Courtesy of CHRYSLER GROUP, LLC
Connect the harness connectors (2) at the steering gear module (1).
Install the rear engine mount. For 2.4L, refer to INSULATOR, ENGINE MOUNT, REAR, INSTALLATION . For 3.2L, refer to INSULATOR, ENGINE MOUNT, REAR, INSTALLATION .
Install the exhaust extension pipe.
Connect the downstream oxygen sensor harness connector.
NOTE:
Repeat STEP 12 through STEP 19 on each side of vehicle.

Fig 6: Front Fascia Support Beams
Courtesy of CHRYSLER GROUP, LLC
Install the front fascia beams (1).

Fig 7: Lower Bumper Reinforcements & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Install the fasteners (2) securing the lower bumper reinforcement (1) to the frame/front end module. Tighten the fasteners to 45 N.m (33 ft. lbs.).

Fig 8: Crossmember To Fascia Support Beams Bracket Retaining Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the crossmember to fascia support beam bracket and install the four retaining bolts (1) and tighten to 95 N.m (70 ft. lbs.).

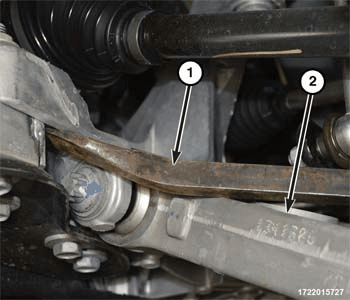

Fig 9: Identifying Pry Bar & Control Arm
Courtesy of CHRYSLER GROUP, LLC
Insert a pry bar (1) in the opening between the control arm front mounting bolt and the front fascia support beam.
Pry down on the control arm (2) until the ball joint stud is clear of the control arm, align the stud with hole in control arm then slowly release the control arm.

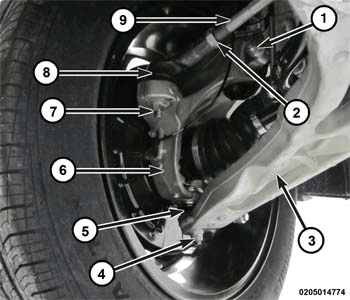

Fig 10: Removing/Installing The Lower Ball Joint Nut To Control Arm
Courtesy of CHRYSLER GROUP, LLC
Install a NEW ball joint to control arm retaining nut (4) and tighten to 25 N.m plus 175° (18 ft. lbs. plus 175°).
Install the outer tie rod end (8) into the knuckle. Refer to TIE ROD, STEERING, INSTALLATION .

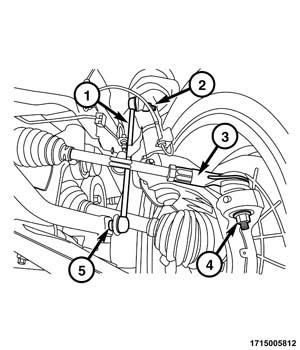

Fig 11: Identifying Steering Link, Outer Tie Rod End & Nuts
Courtesy of CHRYSLER GROUP, LLC
Install the stabilizer link stud into the stabilizer bar. Refer to LINK, STABILIZER BAR, INSTALLATION .
Install the engine belly pan. Refer to BELLY PAN, INSTALLATION .
Install the tire and wheel assembly. Refer to INSTALLATION .
Lower the vehicle.

Fig 12: Identifying Intermediate Shaft, Pinch Bolt And Steering Gear Pinion Shaft
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The intermediate shaft has a block teeth design and can only be installed in the correct direction. Do not force the shaft onto the pinion shaft.
Install the intermediate shaft (1) to the steering gear pinion shaft (2).
Install a NEW pinch bolt (3) and tighten to 30 N-m (22 ft. lbs.).
Remove the steering wheel holder.
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
If a NEW steering gear is installed, the EPS learn procedure is required. Refer to STANDARD PROCEDURE .
