Home >> Jeep >> 2015 >> Cherokee Sport, Eng CD ED8, AWD >> Repair and Diagnosis >> Engine Mechanical >> Fuel System >> Fuel Injection, Diesel >> Sensor, Oxygen >> Installation >> 2.2L Diesel 1/1

2.2L Diesel 1/1

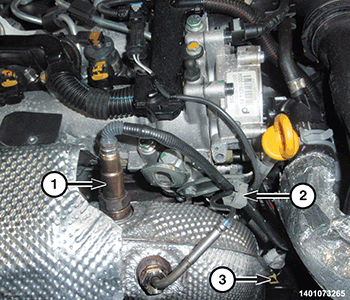

Fig 1: Oxygen Sensor Wire Harness Connector
GC0170007Courtesy of CHRYSLER GROUP, LLC
  1. Install the oxygen sensor (1) and tighten to the proper SPECIFICATIONS  .
  2. Install the exhaust temperature sensor wire into the retainer (2).
  3. Install the oxygen sensor wire harness connector into the bracket and connect the wire harness connector (3).
  4. Install the engine cover.
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
