Exhaust Gas Temperature Sensor 1/4

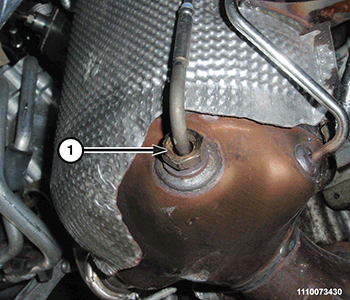

Fig 1: EGT Sensor 1/4

Courtesy of CHRYSLER GROUP, LLC

Install the Exhaust Gas Temperature (EGT) sensor 1/4 (1) into the Diesel Oxidation Catalyst (DOC)/Diesel Particulate Filter (DPF) and tighten to the proper specification. Refer to SPECIFICATIONS .

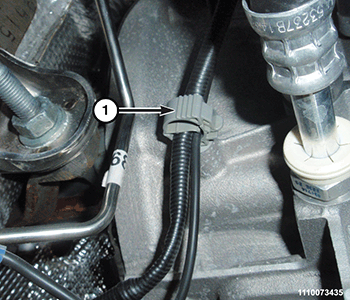

Fig 2: Retainer Clip
Courtesy of CHRYSLER GROUP, LLC
Install the wires into the retainer clip (1) and close the retaining clip.

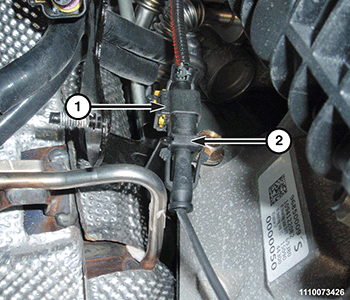

Fig 3: EGT Sensor 1/4 Wire Harness Connectors
Courtesy of CHRYSLER GROUP, LLC
Attach the connector to the bracket and connect the EGT sensor 1/4 wire harness connector (1).
Install the belly pan. Refer to BELLY PAN, INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
