Cherokee Limited, 3.2L Eng VIN S, AWD, Automatic T/Case Control
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
3.2L - DTCS P0151 To P0533
>>
DTC Troubleshooting
>>
P0330-Knock Sensor 2 Circuit
>>
Notes
P0330-Knock Sensor 2 Circuit: Notes
For a complete wiring diagram,
refer to appropriate SYSTEM WIRING DIAGRAMS article
.

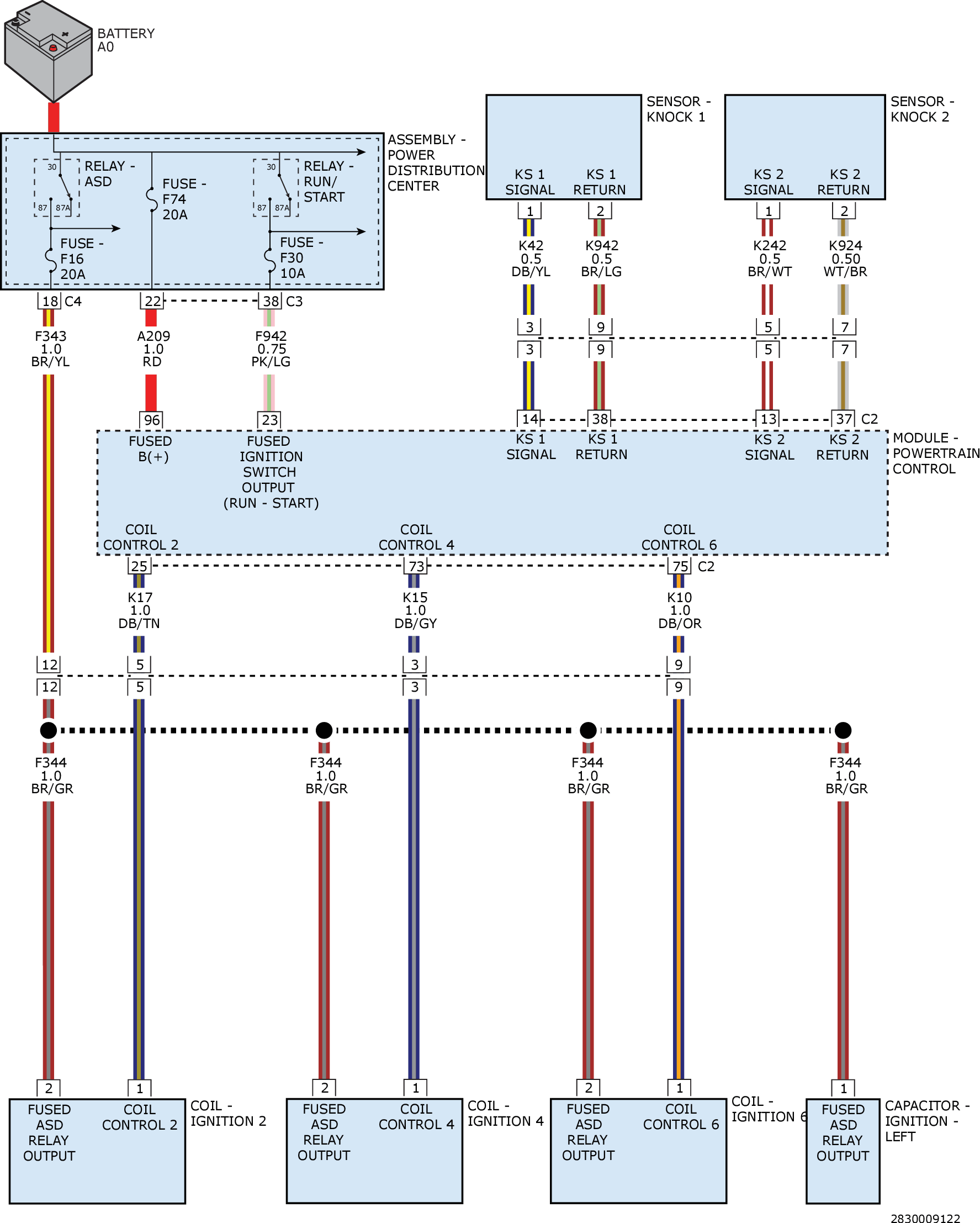

Fig 1: Ignition Coils 2, 4 & 6 Circuit Diagram
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
