2.0L Diesel EGT Sensor 1/3

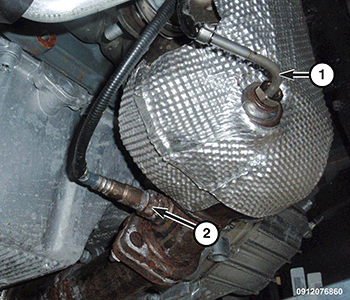

Fig 1: EGT Sensor 1/3
GC0170026Courtesy of CHRYSLER GROUP, LLC
  1. Install the Exhaust Gas Temperature (EGT) sensor 1/3 (1) and tighten to the proper specification. Refer to SPECIFICATIONS .

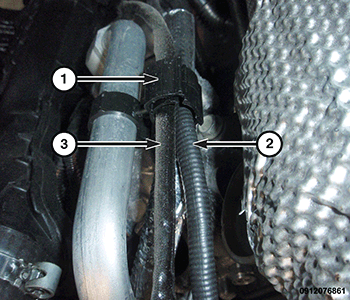

    Fig 2: Wire Harness Retainer & EGT Sensor Wire
    GC0170018Courtesy of CHRYSLER GROUP, LLC
  2. Install the EGT sensor wire (3) into the wire harness retainer and close the hire harness retainer (1).
  3. Install the belly pan. Refer to BELLY PAN, INSTALLATION .

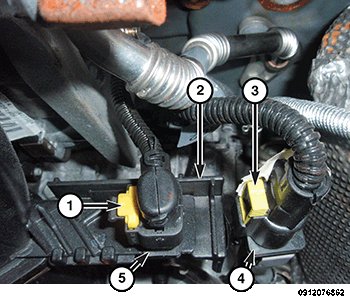

    Fig 3: Removing/Installing EGT Sensor 1/3
    GC0169981Courtesy of CHRYSLER GROUP, LLC
  4. Attach the EGT sensor 1/3 wire harness connector (5) to the bracket.
  5. Connect the EGT sensor 1/3 wire harness connector (1).
  6. Install the engine cover.
  7. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
