Module, Radio Frequency (RF Hub): Installation: Installation

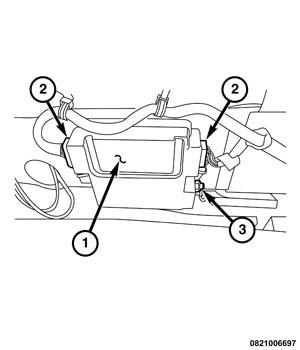

Fig 1: RF Hub & Harness Connectors
GC0160094Courtesy of CHRYSLER GROUP, LLC
  1. Position the RF HUB (1) in place for installation.
  2. Use two fasteners to secure the RF HUB in position.
  3. Connect both body harness connectors (2) (if so equipped) and the antenna connectors (3) (if so equipped) to the RF Hub (1).
  4. Secure the rear of the headliner to an installed position. Refer to HEADLINER, INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  6. If this Electronic Control Unit (ECU) is being replaced with a new unit, follow the required routines outlined in "RF-Hub, BCM, PCM, FOBik and ELV Replacement and Programming Order Guide". Refer to  STANDARD PROCEDURE   .
