Section 94 (Audio/Video/Entertainment/Connectivity (Service Information)): Camera: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

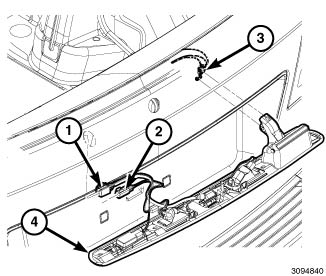

Fig 1: Backup Camera Assembly, Electrical Connectors & Cable

Courtesy of CHRYSLER GROUP, LLC

Install the backup camera onto the liftgate handle.
Position the liftgate handle and backup camera assembly (4) to the liftgate and connect the liftgate handle latch cable (3).
Connect the electrical connectors (1 and 2).

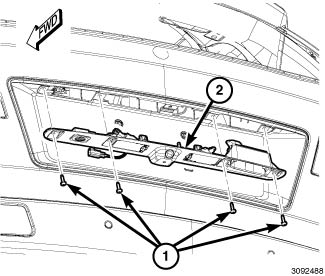

Fig 2: Four Screws & Backup Camera Assembly
Courtesy of CHRYSLER GROUP, LLC
Install the liftgate handle and backup camera assembly (2) onto the liftgate and install the four screws (1). Tighten the screws securely.

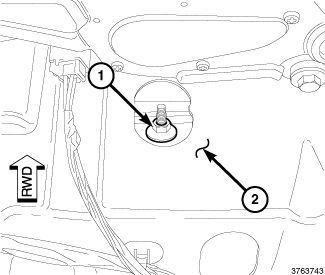

Fig 3: Nut & Liftgate
Courtesy of CHRYSLER GROUP, LLC
Install the nut (1) that secures the liftgate handle assembly to the inside of the liftgate (2). Tighten the nut securely.
Install the liftgate trim panel. Refer to PANEL, TRIM, LIFTGATE, INSTALLATION .
Reconnect the negative battery cable.
