Section 28 (Audio/Video/Entertainment/Connectivity (Service Information)): Amplifier: Installation: Installation
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
- Install the amplifier to the mounting bracket.

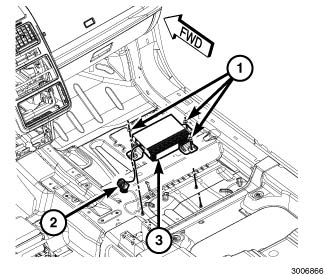

- Position the amplifier (3) and bracket assembly to the floor and install the retainers (1).
- Connect the electrical connectors (2).
- Position the seat to original position.
- Connect the battery negative cable.
