Section 207 (Front Axle - 216FBI): Adjustments: Adjustments: Notes

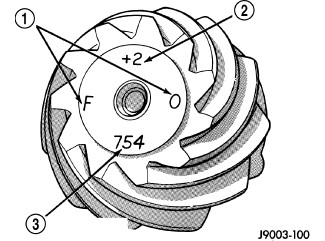

Fig 1: Pinion Gear ID Numbers

Courtesy of CHRYSLER GROUP, LLC

Ring and pinion gears are supplied as matched sets. The identifying numbers (3) for the ring and pinion gear are etched into the each gear. A plus (+) number, minus (-) number or zero (0) is etched into the face of the pinion gear (2). This number is the amount (in thousandths of an inch) the depth varies from the standard depth setting of a pinion etched with a (0). The standard depth provides the best gear tooth contact pattern. Refer to BACKLASH AND CONTACT PATTERN in this Service Information.

If a new gear set is being installed, note the depth variance etched into both the original and replacement pinion. Add or subtract this number from the thickness of the original depth shim/oil slinger to compensate for the difference in the depth variances. Refer to the PINION GEAR DEPTH VARIANCE table.

Note where Old and New Pinion Marking columns intersect. Intersecting figure represents plus or minus the amount needed.

Note the etched number on the face of the pinion gear head (-1, -2, 0, +1, +2, etc.). The numbers represent thousands of an inch deviation from the standard. If the number is negative, add that value to the required thickness of the depth shims. If the number is positive, subtract that value from the thickness of the depth shim. If the number is 0 no change is necessary.
