Isolator, Front CROSSMEMBER, Frame: Installation: Installation

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

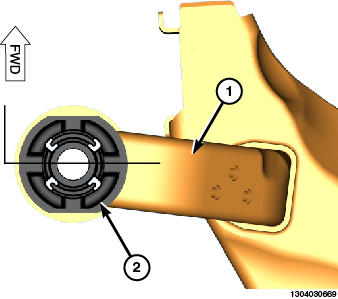

Fig 1: Front Isolator & Crossmember

Courtesy of CHRYSLER GROUP, LLC

Place the front isolator (2) onto the crossmember (1) and position as indicated.

Fig 2: Rear Isolator & Crossmember
Courtesy of CHRYSLER GROUP, LLC
Place the rear isolator (2) onto the crossmember (1) and position as indicated.

Fig 3: Crossmember & Tools
Courtesy of CHRYSLER GROUP, LLC

NOTE:

Prior to using special tools, lubricate Press, Ball Joint (special tool #C-4212F, Press, Ball Joint) (1) threads to provide ease of use and promote tool longevity.

Assemble tools over isolator crossmember assembly as shown:
1. (special tool #9678, Press Plug)
2. Crossmember
3. (special tool #9776, Cup, Receiver)
4. (special tool #C-4212F, Press, Ball Joint)
Tighten Press, (D) screw-drive, pressing isolator into crossmember (B). Install isolator until isolator can flange contacts surface of crossmember.
Install the crossmember.
Refer to CROSSMEMBER, FRONT FORE AND AFT, INSTALLATION , CROSSMEMBER, FRONT SUSPENSION, INSTALLATION and CROSSMEMBER, REAR SUSPENSION, INSTALLATION .
