Plug, Glow, 3.0L Diesel: Installation: Installation

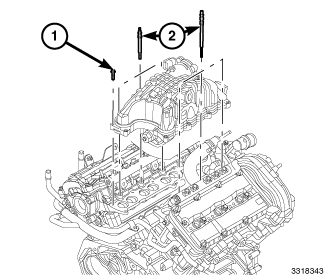

Fig 1: Glow Plugs & Bolts

Courtesy of CHRYSLER GROUP, LLC

1. Install the glow plug. Tighten glow plug to 8 N.m (71 in. lbs.).

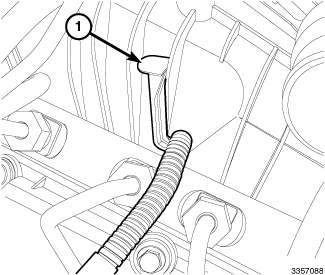

   Fig 2: Glow Plug Wire Harness Connector

   Courtesy of CHRYSLER GROUP, LLC
2. Connect glow plug wire harness connector (1).
   Fig 3: Engine Cover

   Courtesy of CHRYSLER GROUP, LLC
3. Install the engine cover (1).
4. Connect the negative battery cable.
