Sensor, Oxygen: Installation: Installation

Fig 1: NOx Sensor & O2 Sensor (Sensor 1/1)

Courtesy of CHRYSLER GROUP, LLC

1. Install the oxygen sensor (1) and tighten to 50 N.m (37 ft. lbs.).

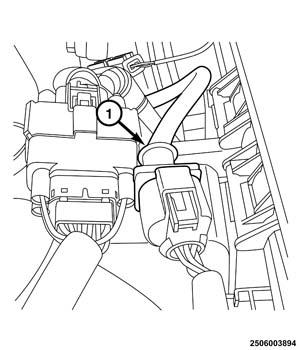

   Fig 2: Oxygen Sensor Harness Connector

   Courtesy of CHRYSLER GROUP, LLC
2. Connect the oxygen sensor harness connector (1).
   Fig 3: Engine Cover

   Courtesy of CHRYSLER GROUP, LLC
3. Install the engine cover (1).
4. Connect the negative battery cable.
