Inlet Temperature Sensor

Fig 1: Engine Cover
GC0146436Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Remove the engine cover (1).

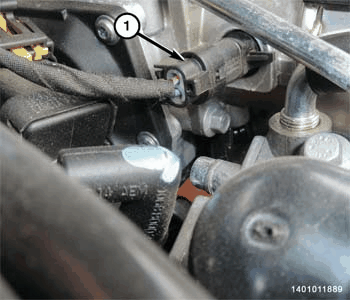

    Fig 2: Inlet Air Temperature Sensor Wire Harness Connector
    GC0158203Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the inlet air temperature sensor wire harness connector (1).
    Fig 3: Air Inlet Temperature Sensor
    GC0158159Courtesy of CHRYSLER GROUP, LLC
  4. Turn counter clockwise 1/4 turn and remove the inlet air temperature sensor (2).
