Tank, Fuel: Installation: Installation

Fig 1: Heat Shield Push Pin Retainers
GC0145702Courtesy of CHRYSLER GROUP, LLC
  1. If removed, position the heat shield and install the push pin retainers (1).
  2. If removed, install the auxiliary fuel pump module. Refer to MODULE, FUEL PUMP, INSTALLATION .
  3. If removed, install the main fuel pump module. Refer to MODULE, FUEL PUMP, INSTALLATION .
    Fig 2: Suitable Hydraulic Jack & Fuel Tank Adapter
    GC0145703Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    If equipped with skid plates, install the skid plates, fuel tank, and support straps as an assembly.

  4. Using a suitable hydraulic jack (1) and a fuel tank adapter (2), position the fuel tank, support straps and if equipped, skid plates.
    Fig 3: Support Strap Retaining Bolts
    GC0145706Courtesy of CHRYSLER GROUP, LLC
  5. Install the fuel tank support strap retaining bolts (1) and tighten to 55 N.m (41 ft. lbs.).
  6. Remove the hydraulic jack and the fuel tank adapter.

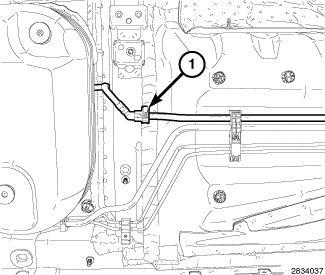

    Fig 4: Quick-Connect Fitting
    GC0145705Courtesy of CHRYSLER GROUP, LLC
  7. Connect the fuel supply line quick-connect fitting (1).
    Fig 5: Left Side Body Skid Plate Retainers
    GC0145704Courtesy of CHRYSLER GROUP, LLC
  8. If equipped, position the left side body skid plate and install retainers (1).
    Fig 6: Fuel Pump Module Electrical Connector
    GC0145699Courtesy of CHRYSLER GROUP, LLC
  9. Connect the fuel pump module electrical connector (2) retaining tab onto the rear crossmember.
  10. Connect the fuel pump module electrical connector (1).
    Fig 7: Heat Shield & Support Bearing
    GC0138690Courtesy of CHRYSLER GROUP, LLC
  11. Install the propeller shaft assembly. Refer to SHAFT, DRIVE, FRONT, INSTALLATION N.
    Fig 8: Vapor Line Quick-Connect Fitting & Vacuum Line Quick-Connect Fitting
    GC0145701Courtesy of CHRYSLER GROUP, LLC
  12. Connect the On-Board Refueling Vapor Recovery (ORVR) vacuum line quick-connect fitting (2).
  13. Connect the ORVR vapor line quick-connect fitting (1).

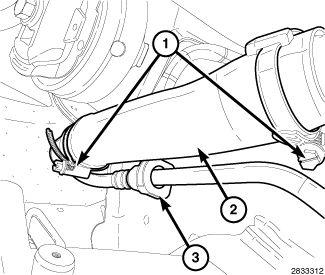

    Fig 9: Filler Hose, Clamps, & Quick-Connect Fitting
    GC0145700Courtesy of CHRYSLER GROUP, LLC

    Install the muffler. Refer to MUFFLER, EXHAUST, INSTALLATION .

  14. Connect the EVAP purge line quick-connect fitting (3).
  15. Position the fuel filler hose (2) and install the hose clamps (1) and tighten to 3 N.m (30 in. lbs.).
    Fig 10: Negative Battery Cable
    GC0145484Courtesy of CHRYSLER GROUP, LLC
  16. Lower the vehicle.
  17. Connect the negative battery cable (2).
  18. Fill the fuel tank.
  19. Start the engine and check for leaks.
