Outlet Temperature Sensor

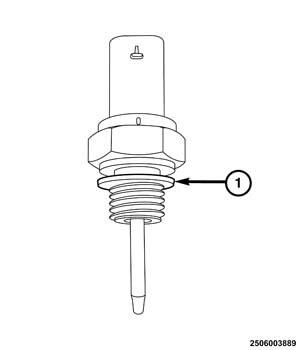

Fig 1: Air Temperature Sensor Sealing Washer

Courtesy of CHRYSLER GROUP, LLC

Inspect the inlet air temperature sensor sealing washer (1) and replace if necessary.

Fig 2: Air Outlet Temperature Sensor
Courtesy of CHRYSLER GROUP, LLC
Install the inlet air temperature sensor (2). Tighten sensor to 20 N.m (177 in. lbs.).
Connect the inlet air temperature sensor wire harness connector (1).

Fig 3: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect the negative battery cable.
