Inlet Temperature Sensor

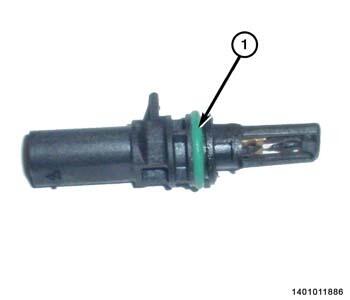

Fig 1: Inlet Air Temperature Sensor O-Ring Seal

Courtesy of CHRYSLER GROUP, LLC

Inspect the inlet air temperature sensor O-ring seal (1) and replace if necessary.

Fig 2: Air Inlet Temperature Sensor
Courtesy of CHRYSLER GROUP, LLC
Install the inlet air temperature sensor (1) and turn clockwise 1/4 to lock in place.

Fig 3: Inlet Air Temperature Sensor Wire Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the inlet air temperature sensor wire harness connector (1).

Fig 4: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect the negative battery cable.
