Section 4 (Propeller Shaft): Removal: Removal

WARNING: This page is about a different variant/trim than selected.

Fig 1: Mark Prop Shaft

Courtesy of CHRYSLER GROUP, LLC

Raise the vehicle on the hoist.
Mark (2) propeller shaft and differential (3) for proper installation.

Fig 2: Retaining Nuts At Prop Shaft
Courtesy of CHRYSLER GROUP, LLC
Remove four rear propeller shaft (1) to rear axle retaining nuts (2).

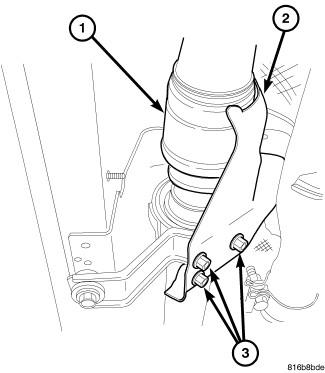

Fig 3: Prop Shaft Heat Shield Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the three bolts (3) from the center support heat shield (2).
Remove the heat shield (2).

Fig 4: Prop Shaft Heat Shield
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Propeller shaft removal. Never allow propeller shaft to hang while connected to Power Transfer Unit (PTU), rear driveline module flanges or center bearings. If propeller shaft section is hung unsupported, damage may occur to joint, boot and/or center bearing from over-angulation. This may result in vibration/balance issues. A helper may be needed.
Remove the two center support mounting bolts (3).

Fig 5: Remove/Install Prop Shaft
Courtesy of CHRYSLER GROUP, LLC
Obtain a helper (if needed) slide propeller shaft (1) out of the PTU and remove the propeller shaft assembly.
