PUMP, Windshield Washer: Installation: Installation
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

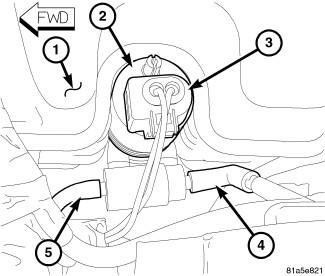

- Install a new rubber grommet seal/filter screen unit into the washer pump mounting hole in the washer reservoir (1). Always use a new rubber grommet seal/filter screen on the reservoir.
- Position the inlet nipple of the washer pump (2) to the rubber grommet seal/filter screen in the washer reservoir.
- Using hand pressure, press firmly and evenly downward on the washer pump/motor unit until the inlet nipple is fully seated in the rubber grommet seal/filter screen in the pump mounting hole of the reservoir.
- Align the top of the washer pump/motor housing with the receptacle in the washer reservoir.
- Using hand pressure, press firmly and evenly on the top of washer pump/motor unit until the motor housing snaps into the reservoir receptacle.
- Reconnect the front (5) and rear (4) washer hoses to the two barbed pump outlet nipples.
- Reconnect the front end module wire harness connector (3) for the washer pump/motor unit to the connector receptacle on the top of the motor housing.
- Reconnect the battery negative cable.
- Refill the washer reservoir with the washer fluid siphoned from the reservoir during the removal procedure.
