MODULE, Power Top Control, Full Open Retractable Roof: Installation: Installation
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

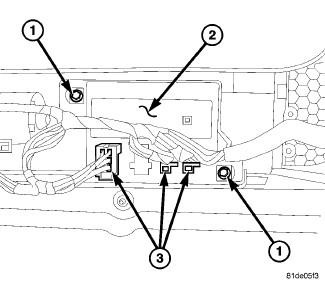

- Position the module (2) onto the power full open retractable roof assembly.
- Install the two mounting screws (1).
- Connect the electrical connectors (3).
- Install the headliner. Refer to Body/Interior/HEADLINER - Installation .
- Connect the battery negative cable.
- Re-initialize roof assembly. Refer to Electrical - Power Systems/Power Top - Standard Procedure .
