CROSSMEMBER, Transmission: Installation: Installation
WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

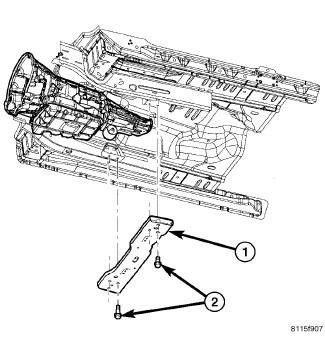

| 1 - CROSSMEMBER |
| 2 - BOLTS (6) |
- Install the crossmember and six bolts and tighten the bolts to 47 N.m (35 ft. lbs.).
- Install four transmission mount nuts and tighten to 88 N.m (65 ft. lbs.).
- Remove the transmission lifting device.
- Install the transfer case skid plate. Refer to PLATE, SKID, TRANSFER CASE, INSTALLATION .
- Install the transmission skid plate. Refer to PLATE, SKID, TRANSMISSION, INSTALLATION .
