Sensor, Crankshaft Position: Installation: Installation
WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

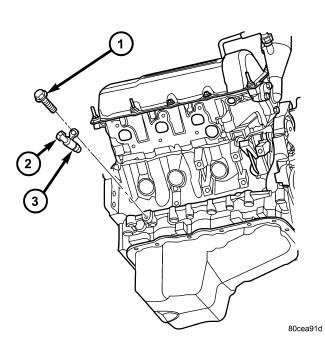

| 1 - MOUNTING BOLT |
| 2 - CKP SENSOR |
| 3 - O-RING |
- Clean out machined hole in engine block.
- Apply a small amount of engine oil to sensor o-ring (3).
- Install sensor (2) into engine block with a slight rocking and twisting action.CAUTION:
Before tightening sensor mounting bolt (1), be sure sensor is completely flush to cylinder block. If sensor is not flush, damage to sensor mounting tang may result.
- Install mounting bolt (1).
- Connect electrical connector to sensor.
- Lower vehicle.
