Universal Transmitter: Removal: Removal

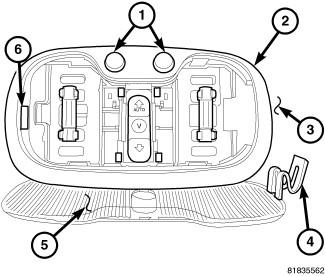

Fig 1: Message Center Components

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the battery negative cable.
2. Remove the courtesy/reading lamp lens (5). Insert a suitable flat bladed tool into the slot (6) in the courtesy/reading lamp assembly (2). Pivot the lens down and to the left to release the holding tab (4). Remove the lamp assembly from the headliner (3).
   Fig 2: Sunroof Switch

   Courtesy of CHRYSLER GROUP, LLC
3. Using an appropriate flat bladed tool, remove the universal transmitter button trim bezel (4).

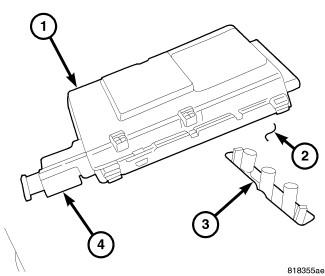

   Fig 3: Universal Transmitter Module

   Courtesy of CHRYSLER GROUP, LLC
4. Working through the courtesy/reading lamp hole in the headliner, pull the universal transmitter module (1) forward and down through the headliner (2).
5. Disconnect the electrical connector.
6. Remove the universal transmitter module from the vehicle.
