Switch, Heated Seat: Installation: Installation
NOTE:
There are different instrument panel accessory switch banks available based on the option content of the vehicle. Ensure the accessory switch bank being installed matches the vehicle options.
NOTE:
Take the proper precautions to protect the front face of the accessory switch bank bezel from cosmetic damage while performing this procedure.
NOTE:

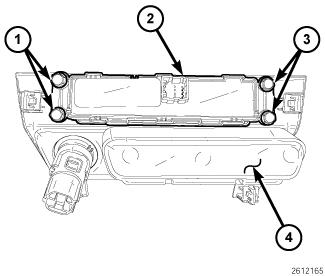

Typical accessory switch bank and bezel shown.
- Position the accessory switch bank (2) onto the back of the bezel (4).
- Install the four screws (1 and 3) that secure the accessory switch bank to the bezel. Tighten the screws to 1 N.m (8 in. lbs.).
- Install the bezel onto the instrument panel.
- Reconnect the negative battery cable.
- Verify heated seat system operation.
