Module-Compass (D3865)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: HCMPB-04-K

Part Description: HCM 4P Female HOUSING ASSEMBLY

Connector No: D3865

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Module-Compass Connector End View

GCWD1016881

Courtesy of CHRYSLER

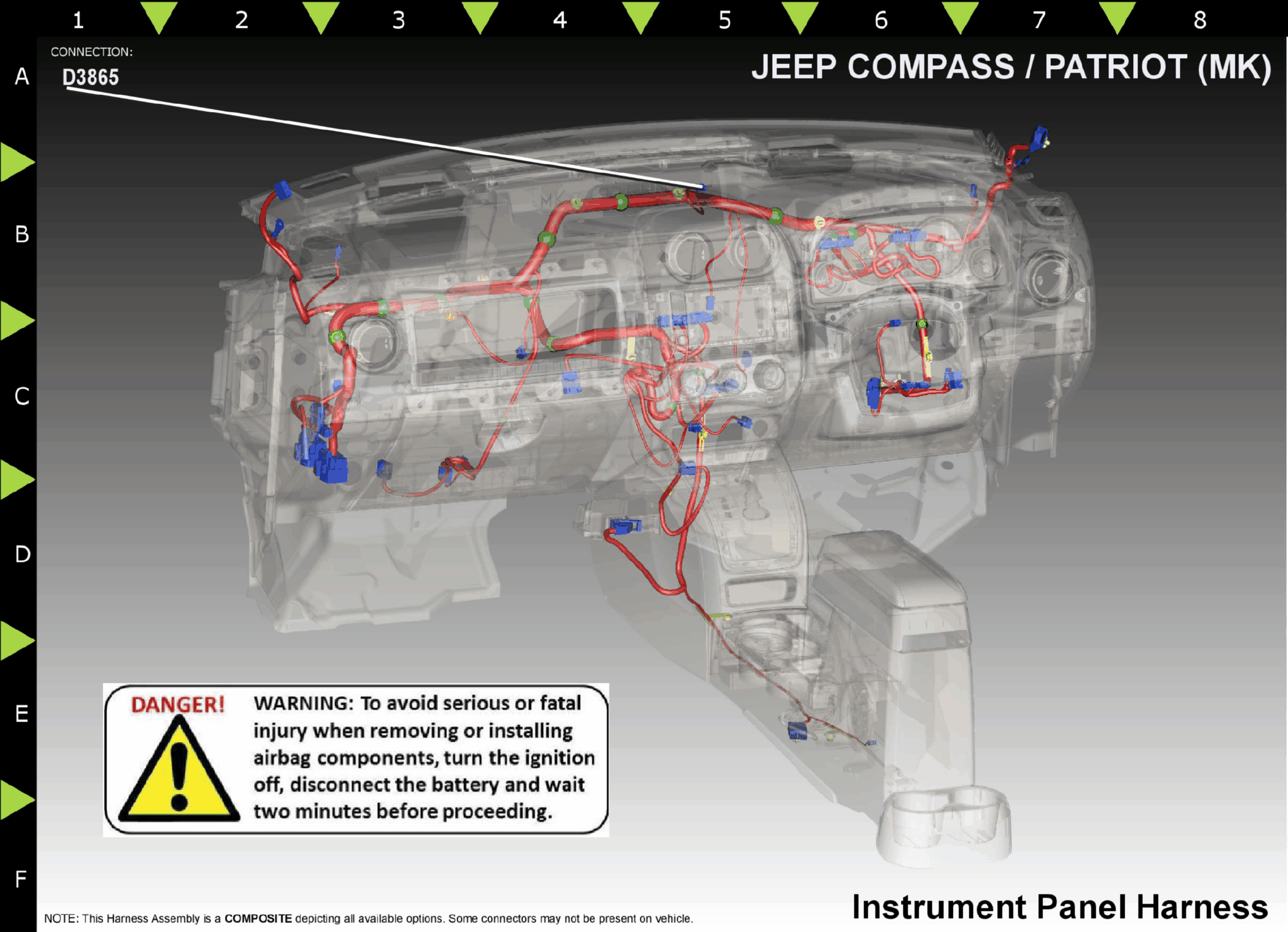

Fig 2: Module-Compass Component Location

GCWD1058229

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

2

D506

WT/DG

22

LIN BUS

N/A

3

Z903

BK/YL

~~

GROUND

N/A

4

F929

PK/RD

22

FUSED IGNITION SWITCH OUTPUT (RUN)

N/A

⁽¹⁾	Pins not listed are not used for this connector
