Module-Occupant Restraint Controller C1 (D3834A)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 1534705-1

Part Description: MQS SOCKET HOUSING ASSEMBLY

Connector No: D3834A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 24

Fig 1: Module-Occupant Restraint Controller C1 Connector End View
GCWD1016924Courtesy of CHRYSLER

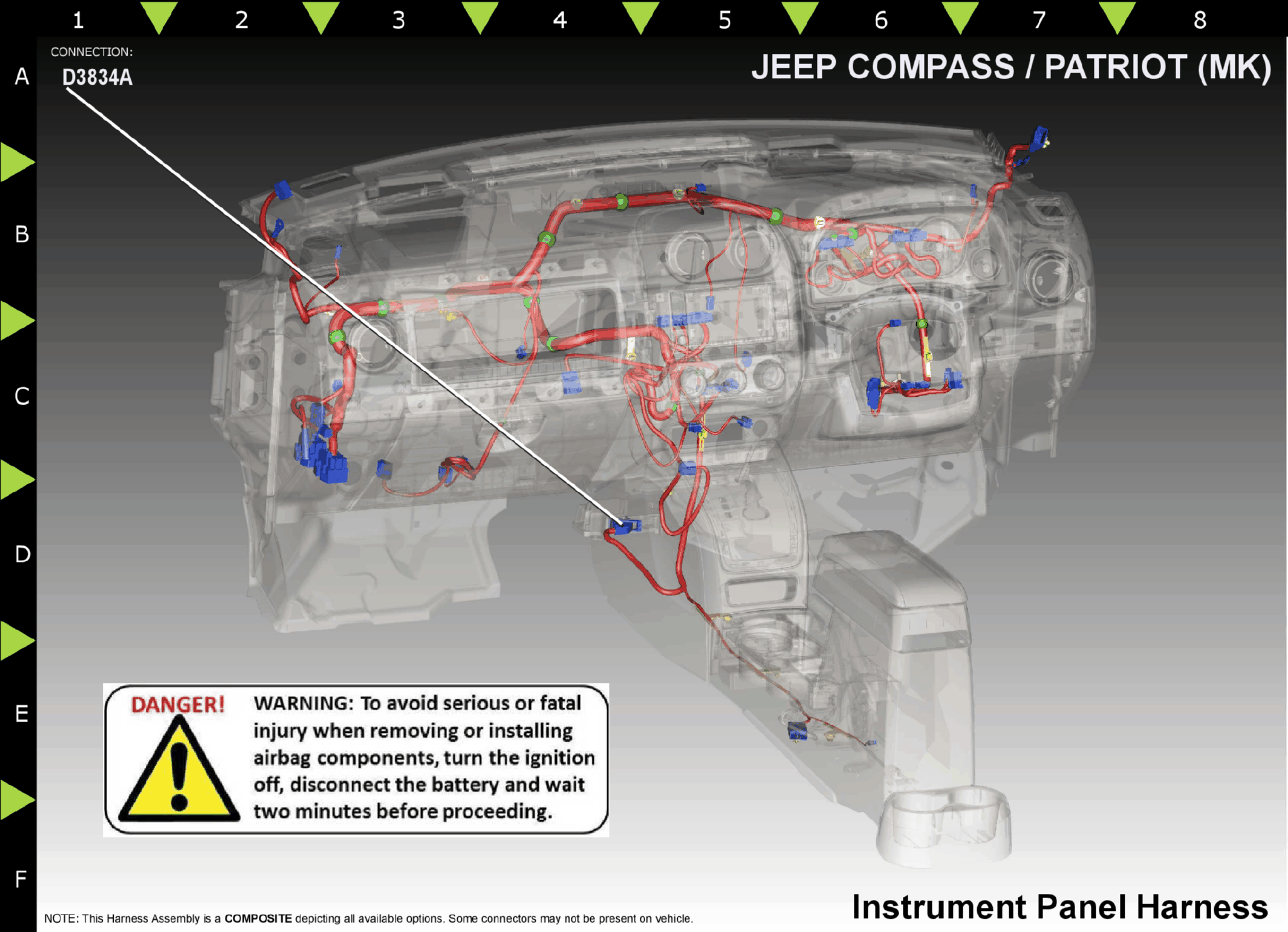

Fig 2: Module-Occupant Restraint Controller C1 Component Location
GCWD1077584Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A1 D55 WT/OR 22 CAN B (+) N/A
A10 R82 WT/OR 20 RIGHT FRONT IMPACT SENSOR GROUND N/A
A11 R81 DG/YL 20 LEFT FRONT IMPACT SENSOR GROUND N/A
A12 R79 LB/VT 20 LEFT FRONT IMPACT SENSOR SIGNAL N/A
A13 R43 LG/BR 20 DRIVER SQUIB 1 LINE 2 N/A
A14 R45 LG/WT 20 DRIVER SQUIB 1 LINE 1 N/A
A15 R44 LB/OR 20 PASSENGER SQUIB 1 LINE 1 N/A
A16 R42 LB/BR 20 PASSENGER SQUIB 1 LINE 2 N/A
A17 R61 LG/VT 20 DRIVER SQUIB 2 LINE 2 N/A
A18 R63 LG/BK 20 DRIVER SQUIB 2 LINE 1 N/A
A19 R64 LB/WT 20 PASSENGER SQUIB 2 LINE 1 N/A
A2 D54 WT/PK 22 CAN B (-) N/A
A20 R62 LB/VT 20 PASSENGER SQUIB 2 LINE 2 N/A
A7 R261 LB/TN 20 DRIVER SEAT POSITION SENSOR DATA N/A
A8 R263 LB/BK 20 DRIVER SEAT POSITION SENSOR VOLTAGE N/A
A9 R80 VT/LB 20 RIGHT FRONT IMPACT SENSOR SIGNAL N/A
(1) Pins not listed are not used for this connector
