Satellite Antenna: Installation: Installation
WARNING: This page is about a different car, the 2013 Jeep Patriot and 2013 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

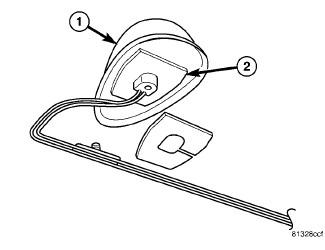

- If original antenna is being reinstalled, remove backing from patch adhesive (2) and apply to antenna base (1).
- Remove backing from the adhesive on the antenna.
- Insert wire harness through hole in roof panel. Press antenna into position until both retainers snap into place.
- Connect wire harness connectors to antenna.
- Install headliner. Refer to HEADLINER, INSTALLATION .
- Connect battery negative cable.
