Anti-Lock Brake System Module: Description: Description

WARNING: This page is about a different car, the 2013 Jeep Patriot and 2013 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The Electronic Stability Control (ESC) may also be referred to as Electronic Stability Program (ESP) depending on the vehicle model year and configuration. Certain components may also reference ESP, ESC, or use the traction control symbol.

The Antilock Brake Module (ABM) is a microprocessor-based device which monitors the antilock brake system (ABS) during normal braking and controls it when the vehicle is in an ABS stop or when in a traction control or Electronic Stability Control (ESC) situation. The ABM utilizes a 47-way electrical connector on the vehicle wiring harness. The power source for the ABM is through the ignition switch in the RUN or ON position.

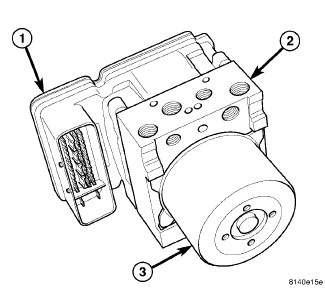

Fig 1: Integrated Control Unit

Courtesy of CHRYSLER GROUP, LLC

1 - ANTILOCK BRAKE MODULE (ABM)

2 - HYDRAULIC CONTROL UNIT (HCU)

3 - PUMP/MOTOR

The ABM (1) is mounted to the HCU (2) as part of the Integrated Control Unit (ICU). The ICU is located in the engine compartment on the inboard side of the right body frame rail behind the strut tower. For information on the ICU, refer to INTEGRATED CONTROL UNIT (ICU), DESCRIPTION .
