Arm, Wiper: Removal: Front

WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Wiper Blade Positioning

Courtesy of CHRYSLER GROUP, LLC

Lift the front wiper arm (1) to its over-center position to hold the wiper blade off of the glass and relieve the spring tension on the wiper arm to pivot shaft connection.
Carefully pry the plastic nut cap (2) off of the pivot end of the wiper arm.
Remove the nut (3) that secures the wiper arm to the wiper pivot shaft (4).

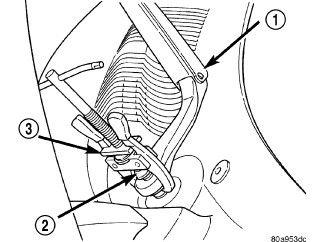

Fig 2: Disengaging Wiper Arm From Pivot Shaft
Courtesy of CHRYSLER GROUP, LLC
If necessary, use a suitable battery terminal puller (3) to disengage the wiper arm (1) from the pivot shaft (2).
Remove the front wiper arm pivot end from the pivot shaft.
