Draining Fuel Tank

WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

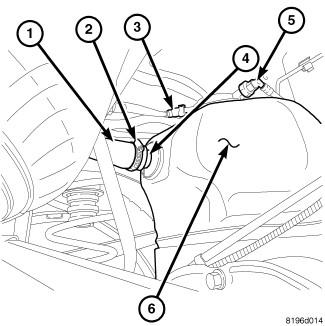

Fig 1: Identifying Fuel Fill Hose, Clamp, Fuel Tank Fitting & Tank
GC0086089Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect negative battery cable.
  2. Remove fuel fill cap.
  3. Raise and support vehicle.
  4. Remove fuel fill hose clamp (2) at rear of tank (6).
  5. Remove fuel fill hose (1) from fuel tank fitting (4).
  6. Position a drain hose into the fuel fill hose opening. Note that a small flapper valve is installed into the opening.
  7. Drain fuel tank using an approved gasoline draining station.
