Pulley, Power Steering Pump: Installation: Gas
WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not reuse the old power steering pump pulley it is not intended for reuse. A new pulley must be installed if removed.
- Replace the pulley (2) if it's bent, cracked, or loose.

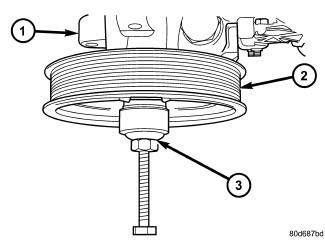

- Install the pulley (2) on the pump (1) using (OTC ® 7771) power steering pulley installation tool or equivalent (3) making sure it is flush with the end of the shaft. Ensure the tool and pulley remain aligned with the pump shaft.
- Install power steering belt. Refer to BELT, SERPENTINE, INSTALLATION .
- Install the fan shroud.
- Install the washer/coolant reservoir assembly.
- Install air cleaner housing.
