DUCT, Floor Distribution, Rear: Removal: Removal
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

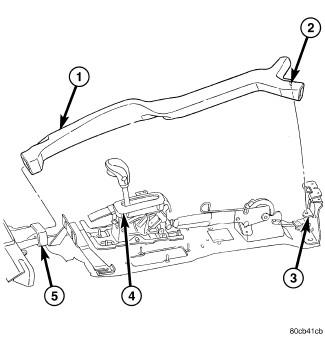

Typical rear floor heat duct shown.
- Remove the floor console. Refer to Body/Interior/CONSOLE, Floor - Removal .
- Remove the push-pin retainer (2) that secures the rear floor heat duct (1) to the floor console bracket (3) located behind the gear shift lever assembly (4).
- Disconnect the rear floor heat duct from the floor distribution duct (5).
- Remove the rear floor heat duct from the vehicle.
