Module-UGDO (D3826)

Harness-Family: Headliner

Color: NATURAL

Gender: FEMALE

Part Number: 2-1241324-1

Part Description: MQS 3POLE CONNECTOR

Connector No: D3826

Option: Standard

Repair Kit Part Number: 68057290AA

Cavity Count: 3

Fig 1: Module-Ugdo Connector End View

GCWD1024717

Courtesy of CHRYSLER

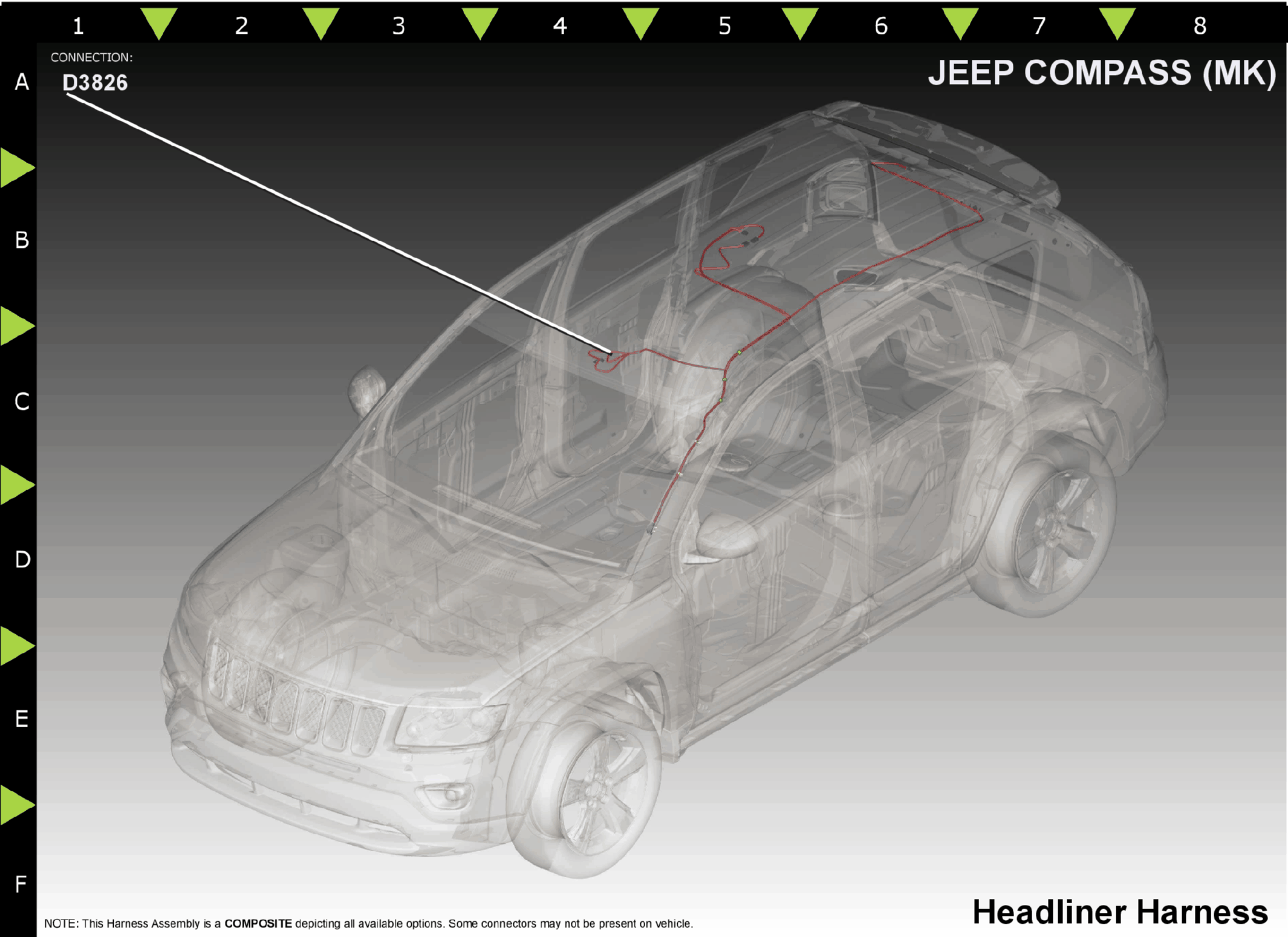

Fig 2: Module-Ugdo Component Location

GCWD1068718

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

A417

RD/DG

20

FUSED B(+)

N/A

3

G38

GY/BK

22

UGDO ENABLE CONTROL CIRCUIT

N/A

⁽¹⁾	Pins not listed are not used for this connector
